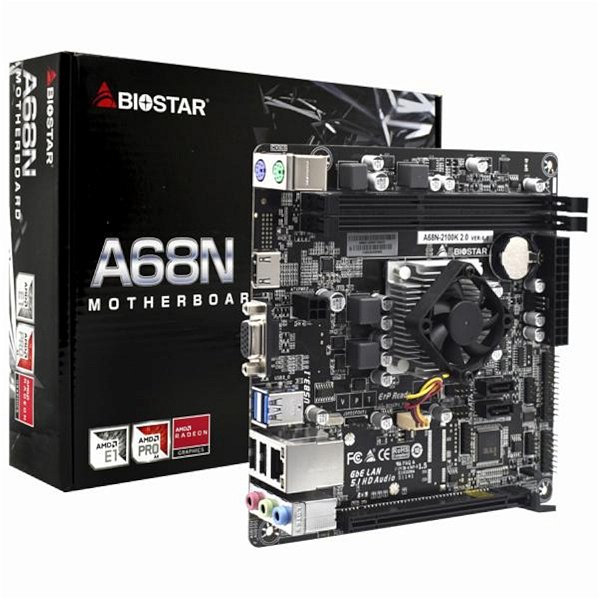

PLACA MAE BIOSTAR A68N 2100K +PROC INTEGRADO E1 6010

Descrição

PLACA MÃE BIOSTAR AMD A68N 2100K COM PROCESSADOR AMD E1-6010

ESPECIFICAÇÕES

Chipset    AMD Beema

CPU    AMD E1-6010 Processor (Dual core 1.35GHz)

MEMORY     Supports Single Channel DDR3 & DDR3L 800/1066/1333 (1.25V)
         2 x DDR3 & DDR3L DIMM Memory Slots
         Max. Supports up to 16GB Memory
         Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module

INTEGRATED VIDEO    AMD Radeon™ R2 Graphics

Supports HDCP

STORAGE    2 x SATA III Connectors (6Gb/s) : Supports AHCI

LAN    Realtek RTL8111H - 10/100/1000Mb/s Controller

AUDIO CODEC    Realtek ALC887 7.1-Channel Audio

Support HD Audio

Support SPDIF_out

USB    2 x USB 3.2 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT    1 x PCI-E 2.0 x16 Slot (x4)
REAR I/O    1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O    2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header
H/W MONITORING    CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
DIMENSION    Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS SUPPORT    Supports Windows 7 /8.1 /10
Smart Speed LAN
ACCESSORIES    2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
